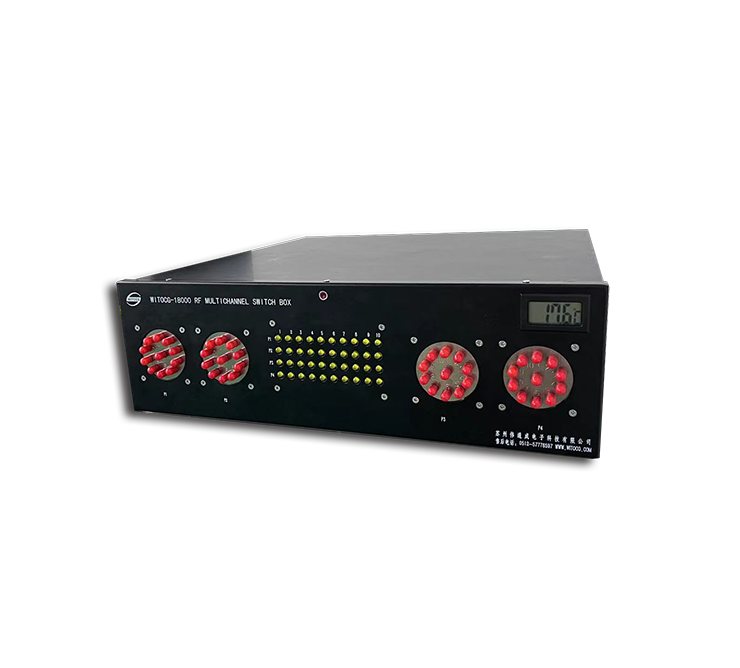

Matrix Switch Control Box

Matrix Switch Control Box

1. Provides a complete calibration method for 40 ports (expandable to 400 ports), which can correct the characteristic errors of connecting lines and test fixtures, and improve the overall test accuracy.

2. Internal RF Coaxial professional structural design provides excellent high-frequency isolation.

3. High-frequency imported components, Coaxial Relay switching service life is up to more than 2 million times.

4. The LED panel provides precise indication, and the logarithmic display shows zero time difference when switching.

5. Can display temperature and humidity in real time.

6. With different test fixtures and software, you can test different types of wires: such as SFP/QSFP, SAS, USB3.1, HDM!...etc.

7. The operating software is simple and easy to learn, and you can easily get started within 2 hours.

8. Various report format outputs (such as RPT, PDF, Excel file formats) can be adapted to customer needs.

9. Provides "save" and "call" functions for calibration projects, which is very convenient for users to operate.

Measurement parameters vary depending on the type of test line purchased.

1.Frequency domain parameters(S-Parameter) Attenuation/lnsertion Loss (Sdd21/Sdd12)

Return Loss(Sdd11/Sdd22)

Differential to Common Mode Conversion (Scd21/Sdc21)

Delay

Skew

Other S-Parameter

2.Time-Domain Parameter lmpedance  Delay

Inter-Pair Skew

Intra-Pair Skew

Rise Time
