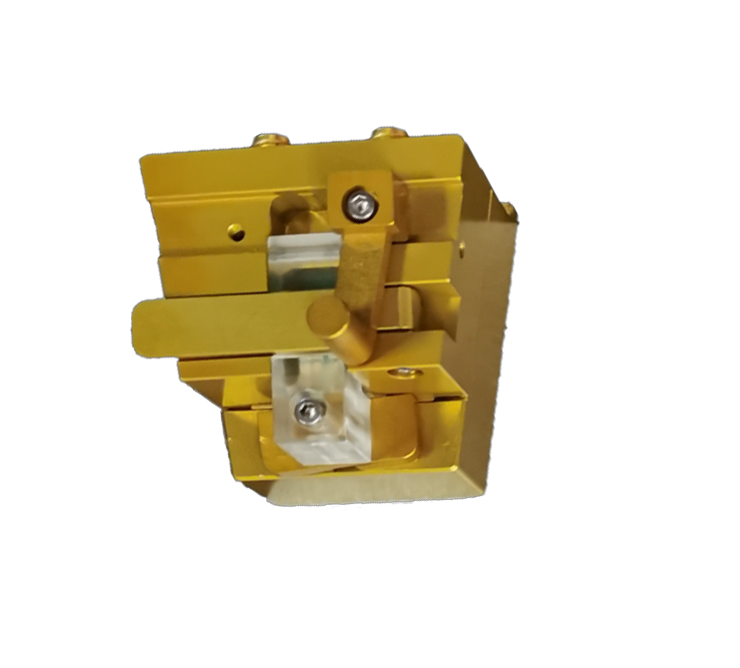

20GHz Bare Wire Test Fixture

20GHz Bare Wire Test Fixture

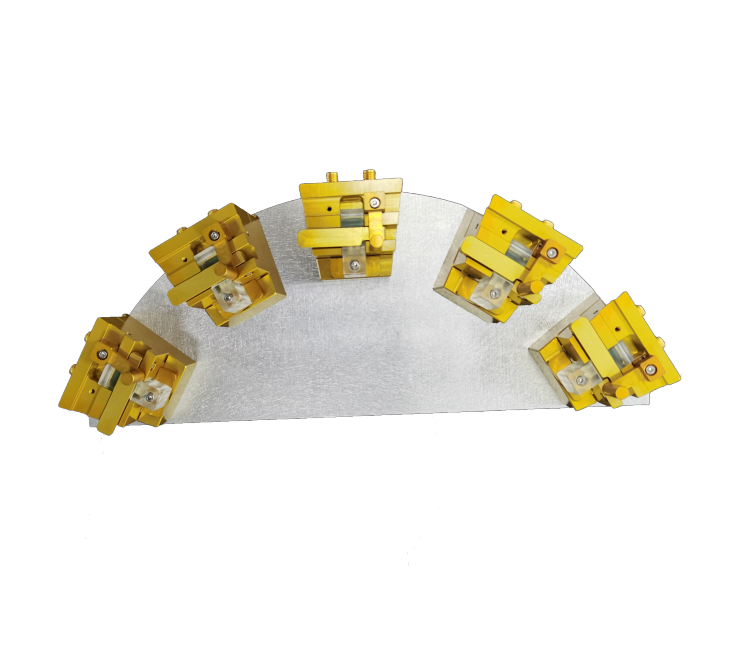

Special test fixture developed for special wires (differential 100Ω) and test frequency up to 20GHz, and can be applied to various wire diameters (AWG), such as USB 3.1/HDMI/SFP/DisplayPort/SATA/LAN...etc. All can be used together. The number of fixture pairs can be selected from 1 to 8 pairs, which can be purchased according to customer needs.

1. Can meet the testing requirements of various bare wires, such as ThunderBolt, SFP, DisplayPort, DiiVA, USB 3.0, HDMI, DVI, etc.;

2. Excellent high frequency characteristics: excellent impedance matching, SKEW and extremely short rise time, good insertion loss and reflection loss;

3. Suitable for S-parameter test and TDR test;

4. The wire clamping guide groove design facilitates the close integration of the wire conductor and the fixture test conductor; the lever clamping method is used for easy operation;

5. Consumable design, customers can replace it by themselves without interruption of use;

6. Can be used with different AWG wires (just purchase additional accessories);

7. Customers can choose various correction methods: TRL correction/SOL correction/Thru correction/E-Cal correction.
