WITOCG-EMC Intelligent Control System Software

WITOCG-EMC Intelligent Control System Software

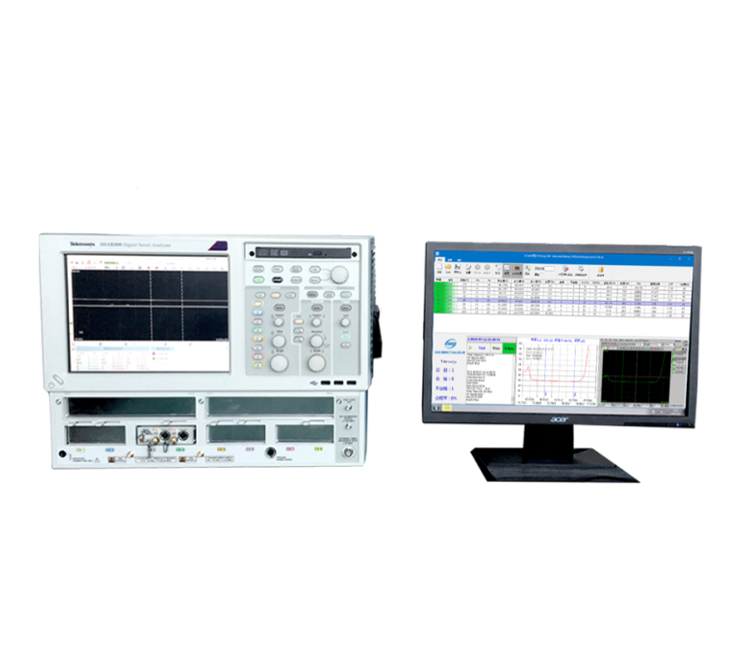

Name：Impedance tester + software test system

Applicable Models:TEKTRONIX  DSA8200/8300

1. A software system developed and designed in response to the needs of industry customers for Industry 4.0.

2. With the WITOCG-3000 integrated control card, it can be connected and used with TEKTRONIX and KEYSIGHT instruments.

3. Supports Windows XP, Windows 7, and Windows 10 systems, and the installation is simple and convenient.

4. Realize automated testing and use the foot control system to save testing time, reduce testing personnel, and improve work testing efficiency, thereby enhancing the competitiveness of customer products.

5. Supports reading parameters directly from the instrument, has the function of automatically obtaining the starting point and spacing, and supports setting the average number of sampling times, number of recording points, rise time, bandwidth and other functions.

6. New test program files can be generated based on the BOM provided by the customer.

7. During the test process, the input of S/N number supports barcode gun scanning, QR code input, and snap input, which saves manual input time and improves efficiency.

8. Can count the total test time and daily (jitter) test time.

9. Supports display of real-time dynamic waveforms, making measurement more convenient and data more accurate.

10. You can use spec tolerance to display the upper and lower horizontal line scales for judgment.

11. Support single-line, dual-line mixed testing and multi-channel testing.

12. Support instrument screenshots, intelligent generation of EXCEL, PDF, CVS and other report functions (or data output format customization according to customer specific requirements).

13. It has the function of storing data, including powerful data search function and data comparison function; when viewing the same material number, the test data waveforms of different historical times can be overlapped and compared, or the waveform data tested by different testers can be compared online; and then analyzed Abnormality in the test data waveform.

14. The data query function includes S/N number, project name, batch number, specification, operator, data result PASS/FAIL, test time and other keyword queries.

15. It can automatically eliminate abnormal data in the test, reintegrate other data after eliminating abnormal data, and draw curve graphics. This feature saves testers and managers from tedious manual steps.

16. It can ensure data accuracy and consistency, such as waveform display data, instrument screenshot display data, and database data. The test data of the three are completely consistent.

17. Existing old test programs can be automatically converted and new test programs can be generated for data testing.

18. TEKTRONIX and KEYSIGHT instruments can be fully controlled. For new testers, there is no need to train the operation of the test instruments. They only need to train the WITOCG-EMC intelligent test software system to set the test program, reducing the labor intensity of the personnel. One person can independently Complete the entire process from setup to normal testing.
