WITOCG-8000 Intelligent Control System Software

WITOCG-8000 Intelligent Control System Software

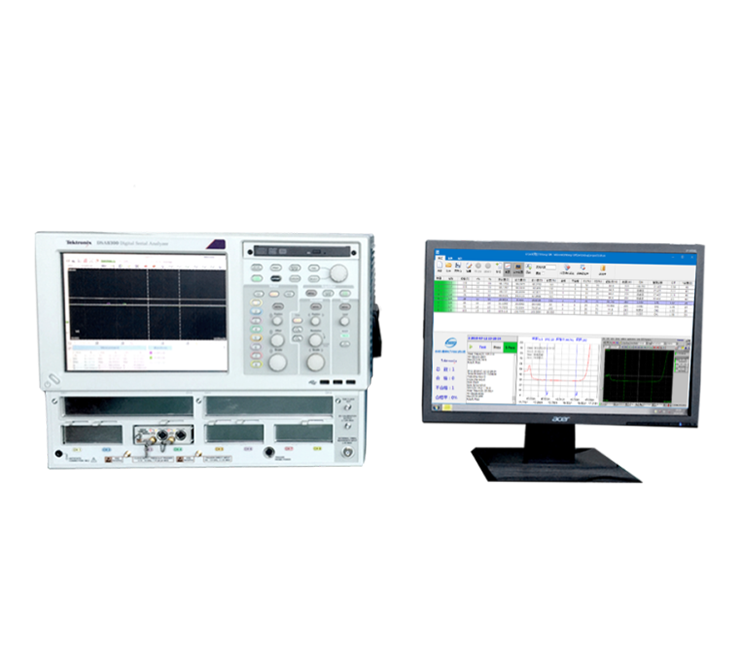

Name: Impedance Tester + Software Test System

Applicable Models:TEKTRONIX  DSA8200/8300

1. A software system developed and designed in response to the needs of industry customers for Industry 4.0.

2. With the WITOCG-3000 integrated control card, it can be connected to TEKTRONIX and KEYSIGHT instruments.

3. Supports Windows XP, Windows 7, and Windows 10 systems, and the intelligent software control system is simple and convenient to install.

4. Realize automated testing and use the foot control system to save testing time, reduce testing personnel, and improve work testing efficiency, thereby enhancing the competitiveness of customer products.

5. It has the function of automatically obtaining the starting point and spacing, and supports setting the average number of sampling times, number of recording points, rise time, bandwidth and other functions.

6. New test program files can be generated based on the BOM provided by the customer.

7. During the test process, the input of S/N number supports barcode gun scanning, QR code input and snapshot input, saving manual input time and improving efficiency.

8. The total test time and daily (jitter) test time can be counted.

9. Supports display of real-time dynamic waveforms, making measurement more convenient and data more accurate.

10. You can use spec tolerance to display the upper and lower horizontal line scales for judgment.

11. Support single-line, dual-line mixed testing and multi-channel testing.

12. Support instrument screenshots, intelligent generation of EXCEL, PDF, CVS and other report functions (or data output format customization according to customer specific requirements).

13. It has the function of storing data, including powerful data search function and data comparison function; when viewing the same material number, the test data waveforms of different historical times can be overlapped and compared, or the waveform data tested by different testers can be compared online; and then analyzed Abnormality in the test data waveform.

14. The data query function includes S/N number, project name, batch number, specification, operator, data result PASS/FAIL, test time and other keyword queries.

15. It can ensure data accuracy and consistency, such as waveform display data, instrument screenshot display data, and database data. The test data of the three are completely consistent.

16. Existing old test programs can be automatically converted and new test programs can be generated for data testing.

17. The instrument can be completely controlled. For new testers, there is no need to train the operation of the test instrument. They only need to train the WITOCG-8000 intelligent test software system to set up the test program, reducing the labor intensity of the personnel. One person can independently complete the process from setting up the program to The entire process of normal testing operates.

18. There is no need to worry about the nervousness and high mobility of testers, nor the long training period for operators of the old software system. You only need to control the system through the WITOCG-8000 intelligent testing software, and you can be proficient in work production within 1-2 days.
