Withstand Voltage Tester

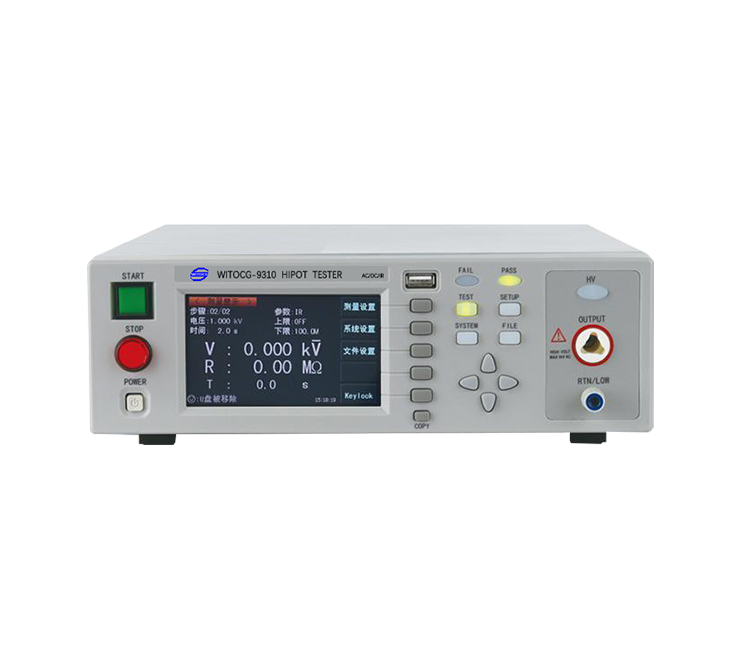

WITOCG-9310
Withstand Voltage Tester
1. 480x272 dots, TFT-LCD display
2. Rapid discharge and arc detection functions
3. Enhanced human body protection function: electric shock protection function
4. Can store 20 test files, each file can store 20 test steps, and any test mode can be selected for any step
5. The voltage rise time and test time can be set arbitrarily within 999.9 seconds. The test waiting time can be set arbitrarily for the DC withstand voltage.
6. Brand new operation interface and humanized panel design
7. The instrument working program can be upgraded through U disk
8. Keyboard lock function
9. Support PLC interface
| Pressure resistance test | Output voltage | AC | 0.05kV-5.00kV ±2% |
| DC | 0.05kV-6.00kV ±2% | ||
| Current test range | AC | 0mA-10.00mA±(2%readings+5words) | |
| DC | 0mA-5.00mA±(2%readings+5words) | ||
| Quick discharge function | Automatic discharge at the end of the test(DCW) | ||
| Insulation resistance test | Output voltage | 0.10kV-1.00kV +2% | |
| Electropositive test range | 0.1MΩ-10.0GΩ | ||
| Resistance test accuracy | 0.10MΩ-999GΩ range+10%+2words | ||
| 1.00GΩ-10.0GΩ range+20%+2words | |||
| Discharge function | Automatic discharge at the end of the test | ||
| Arc detection | Measuring range | Corresponding current | 1mA-20mA |
| General parameters | Voltage rise time | 0.1s- 999.9s | |
| Test time setting(AC/DC) | 0.2s- 999.9s | ||
| Voltage drop time | 0.1s- 999.9s | ||
| Waiting time(IR) | 0.2s- 999.9s | ||
| Memory (unit) | 20 test files, each file can store 20 test steps | ||
| Interface | HANDLER、RS232、USB DEVICE(PC interface)、USB HOST(USB interface) | ||
| Random accessory | WITOCG-90003C Three-core power cord、WTOCG-90003R Withstand voltage test line | ||
