Air Pressure Tester
WITOCG-HMI QYCSY

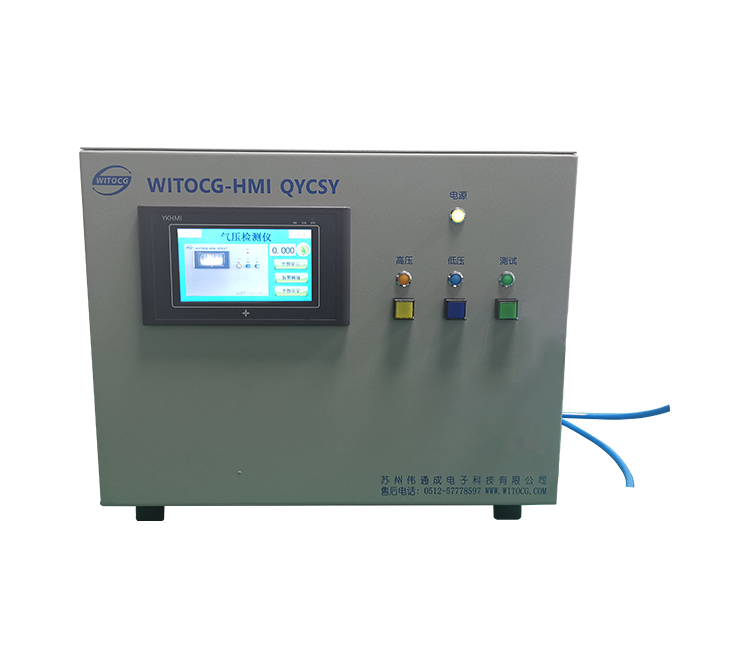

Air Pressure Tester
WITOCG-HMIQYCSYQ air pressure tester is an instrument used to detect whether constant pressure inflatable equipment is working properly. It can detect whether the inflatable equipment stops supplying air in the high-pressure range and whether it starts inflating automatically when the pressure is below low. The equipment is easy to operate, the test judgment is simple and intuitive, and it has a wide range of applications.
| Model | WITOCG-HMIQYCSY |
| Dimensions(mm) | 435x261x352 |
| Equipment usage environment requirements | For indoor use, temperature 0~40 degrees, humidity less than 60% |
| Power supply | 220V |
| Product shell | Ordinary carbon steel baking paint material |
| Test pressure range | 0~1MPa |
| Sensor accuracy | 0.2%FS |
| Pressure regulation form | Touch Screen Input |
| Pressure adjustment range | 0~0.5MPa |
| Adjustment accuracy | 0.01Mpa |
