Gantry Image Measuring Instrument

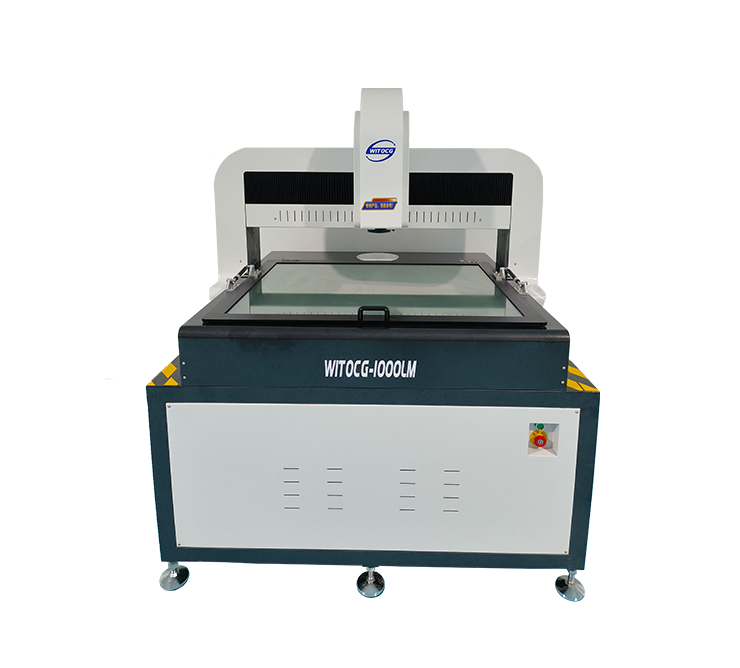

WITOCG-1000LM is a high-performance automatic optical image measuring instrument. This product has the characteristics of high speed and precision, and can perform multiple functions on a single machine, greatly reducing the cost of repeatedly purchasing machines and the waste of space. It can efficiently detect the contour and surface shape, size, angle and position of various workpieces. It is especially suitable for PCB boards, films, protective film optical glass, electronics, large sheet metal parts, connectors, precision mechanical parts, electronic components, semiconductor components and other industries to achieve rapid and accurate detection of large quantities.

1. The whole machine is made of natural marble, which has no deformation, high precision and high stability;

2. Brand new streamlined design, clean, intuitive and generous appearance;

3. Adopt fully closed-loop servo control technology, which ensures smooth operation, low noise and fast operation speed;

4. Full joystick/mouse operation, simple and easy to use;

5. The bottom light and surface light use adjustable LED cold light sources, which can achieve accurate measurement of various complex surface workpieces. The use of LED cold light sources can avoid the disadvantages of thermal expansion and contraction caused by general hot light sources and avoid secondary workpieces. deformation;

6. Adopt American TEO 430,000-pixel industrial high-definition color CCD;

7. Using STEP-ZOOM fixed-frame continuous zoom lens, the zoom ratio does not require correction, which greatly improves work efficiency and measurement accuracy, and the image is enlarged from 30X to 200X;

8. The Z-axis adopts a parallel linear guide structure and a counterweight design, which reduces its weight, improves the stability of the structure, reduces its own deformation, and improves the positioning accuracy and stability of the Z-axis;

9. Measurement software: Using the powerful measurement software developed by the company, it can accurately measure various workpieces conveniently and quickly, providing users with complete measurement solutions;

10. Optional Japanese Keyence G30 laser probe;

11. Equipped with a continuous locking zoom lens, which allows continuous zooming without correction.
