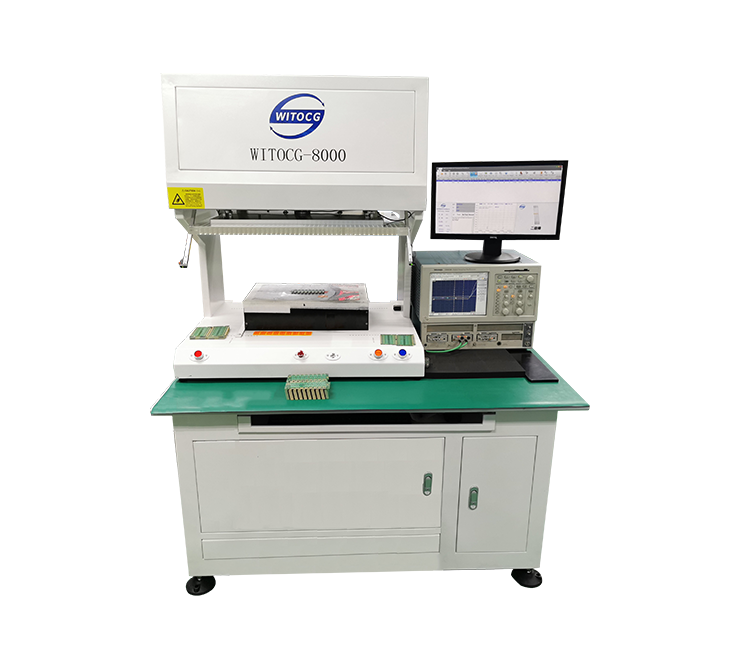

Semi-Automatic Impedance Test System Press Bracket

Semi-Automatic Impedance Test System Press Bracket

1. Using high-frequency microwave coaxial line fixtures, multi-point measurements can be made quickly.

2. Can perform characteristic and differential impedance mixed programming tests.

3. Through 18GHZ high-frequency microwave switch expansion, it can meet the needs of high-speed and accurate mass production testing.

4. Set up a special electrostatic protection device to effectively protect the TDR METER from electrostatic damage.

5. Using GPIB interface, it can be matched with TDR METER of TEKTRONIX, KEYSIGHT and POLAR.

6. WINXP operating system, powerful report output function, can provide daily reports, weekly reports and monthly reports calculated in CPK.

7. The semi-automatic test platform can customize the work surface according to the needs of customers' test boards, which can meet the needs of testing large PCB boards.
