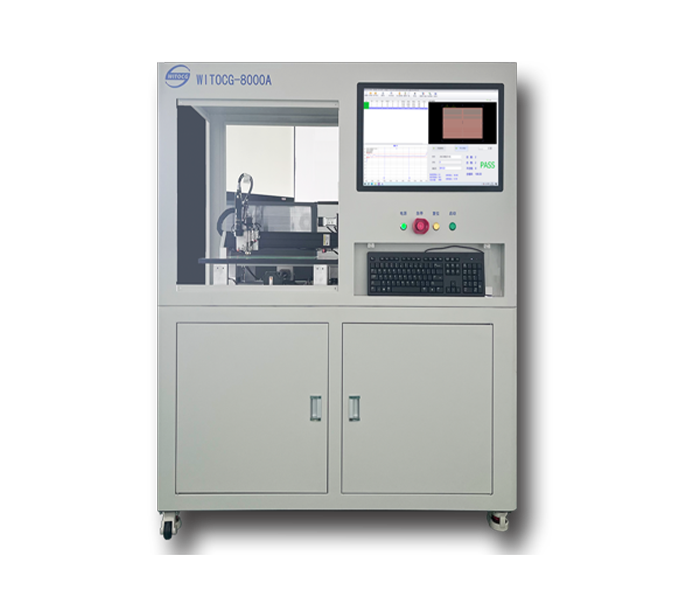

Fully Automatic Impedance Tester
WITOCG-8000SA
Fully Automatic Impedance Tester
1. The testing process does not require manual operation, which greatly saves labor costs.
2. No need to make additional molds.
3. Able to perform characteristic impedance testing of single-ended or differential lines and manually replace test probes.
4. Precise motion control will not cause damage to the test board.
5. Through visual positioning, the probe can be accurately aligned with the test point, and the test accuracy is high.
6. The fully automatic testing machine operates very stably and the test results are consistent.
7. A complete workflow has been developed for the testing machine and management is simple.
8. The safety of the testing machine is in place, and limit switches are installed in many places to ensure personnel safety.
9. The testing machine is highly modular and can be customized.
10. The testing machine has its own light source and is not affected by the environment.
11. No test points are missed, and the test coverage reaches 100%.
| Name | Fully Automatic Impedance Tester | Probe pressure range | 40~80g(Adjustable) |
| Model | WITOCG-8000SA | Test accuracy | Difference: ± 1% @50 ± 2 ohm air line |
| Maximum size of test area | 360*280mm | Repeat test accuracy | Difference: ± 1% @50 ± 2 ohm air line |
| Minimum size of test area | 50*50mm | Main control computer | INTEL i7 cpu, 1T hard drive, 16G memory |
| Positioning accuracy | ±50um | TDR METER | TEKTRONIX DSA 8200/8300 80E04/80E08/80E10 TDR module |
| PCB fixation method | Fixed in position | KEYSIGHT E5071C/E5080B KEYSIGHT N5224B/N5225B/N5227B | |
| PCB Thickness | 0.2~10mm | Environment | Temperature: 22+/-2°C Humidity: 20%~80% |
| Testing efficiency | <3 seconds/test point | Equipment appearance size | 1.35m(W)*0.80m(D)*1.70m(H) |
| Test point spacing | 0.3-4.0mm Manual adjustment | ||
| Number of probes | 2 |
